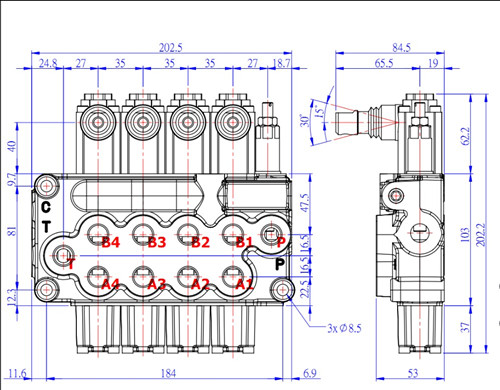

4联多路阀（D15） |
|
| |
多路阀d15主要技术参数
| nominal flow rating |
45 l/min |
12 us gpm |
| operating pressure(max.) |
parallel/tandem circuit |
315 bar |
4600 psi |
| series circuit |
250 bar |
3600 psi |
| back pressure(max.) |
on outlet port t |
25 bar |
360 psi |
| fluid temperature |
with nbr seals |
-20°c ~ 80°c |
-4°f ~ 176°f |
| with fpm seals |
-20°c ~ 100°c |
-4°f ~ 212°f |
| viscosity |
operating range |
15mm2 /s ~ 75mm2 /s |
15 ~ 75 cst |
| max. |
400mm2 /s |
400 cst |
| min. |
12mm2 /s |
12 cst |
| ambient temperatur |
-40°c ~ 60°c |
-40°f ~ 140°f |
备注：可根据客户要求定制产品 ，更多详情请致电本公司！
|
|
| |
|
|
 |
|
